Small craft market must tell customers of dangers, says MAIB, to avoid passenger injury

Two RIBs about to collide used to illustrate MAIB's recommendations about passenger safety on RIBs The RIBs about to collide with each other

Poor posture, inadequate seating and a host of other factors can lead to life-changing injuries on RIBs as passenger safety is pulled into focus by recent events. If the sector’s reputation is to survive accidents like Seadogz, owners and operators need to start owning best practice, controlling the risks and demonstrating that their trips are safe, says MAIB.

When you are trying to promote the fun element of an activity, telling your customers that it can be hazardous might appear counterproductive. This could explain the reluctance of the ‘small-craft passenger/experience ride’ industry to acknowledge and take action on the findings from recent accident investigations.

However, until the lessons are acknowledged and appropriate actions taken, passengers will continue to suffer life-changing injuries and possibly death as the Marine Accident Investigation Branch (MAIB) investigation report into the RIB Seadogz accident illustrates. If this sounds like a hard-hitting message, it is meant to be.

MAIB’s investigations into passenger vulnerability

MAIB has investigated numerous accidents involving RIBs, many of which are referred to in this article. While the early investigations focused on the usual crop of collisions and groundings, it was not until the investigation into the heavy landing of the RIB Celtic Pioneer in 2008 that passenger vulnerability to injury came into focus.

Illustration of spinal injury which may occur in RIBs if precautions not taken

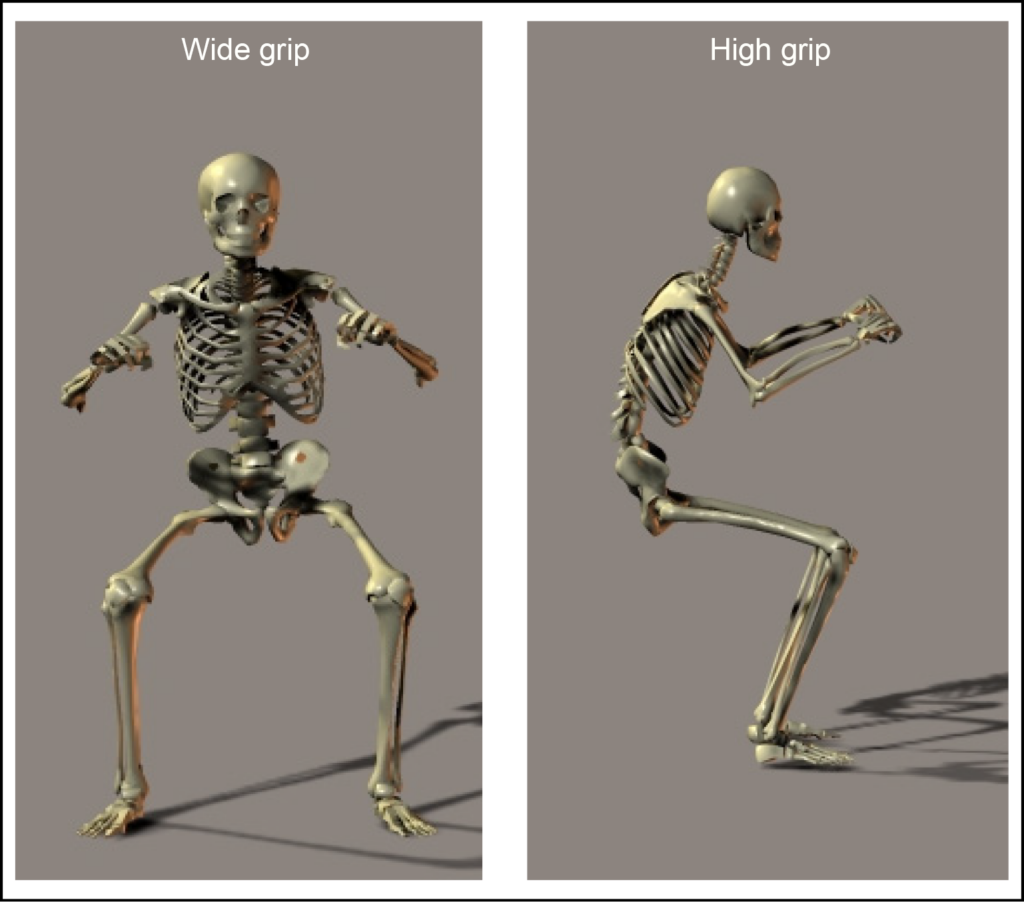

That investigation report drew on recent academic and practical research to highlight the importance of good seating, posture and handholds to help mitigate against spinal injuries. The particularly vulnerable part of the spine was found to be the lower lumbar region (L1 to L3), which could suffer wedge compression fractures, but other spinal injuries were not uncommon (image courtesy of ST Research).

Fortunately, passengers suffering less damaging injuries often walked off the RIB with a sore back, but if the pain persisted they would see their doctor a few days later, by then the link between the injury mechanism (the RIB ride) and the injury had been lost. Consequently, MAIB was only aware of those accidents where the emergency services were called to extract the injured party. This resulted in a skewed picture of the actual injury rate.

Nonetheless, there were still sufficient accidents being reported for the branch to heavily warn against the consequences of poor posture and inadequate seating (images courtesy of Celtic Pioneer Report and ST Research).

Man sits in RIB to demonstrate body posture

Unfortunately, the messages were not getting through and a short while later a person travelling to work on the River Thames suffered a very serious back injury when the RIB they were travelling on crossed the wake of another vessel at about 30 knots.

person on RIB

The worker was sitting on top of a locker with no padding or handholds and had their rucksack across their chest (image courtesy of MAIB).

The combination of the hard seat and poor posture resulted in the victim suffering anterior wedge fractures of the first and third lumbar vertebrae (L1 and L3). The victim was fitted with an external body brace in hospital and remained off work for more than four months while recovering, though was still receiving physiotherapy treatment eight months after the accident.

In response to MAIB’s recommendations, the industry produced two voluntary codes of practice for RIB operators, but initial take-up was patchy.

Side impact hazards for passengers when riding on RIBs

Two RIBs about to collide

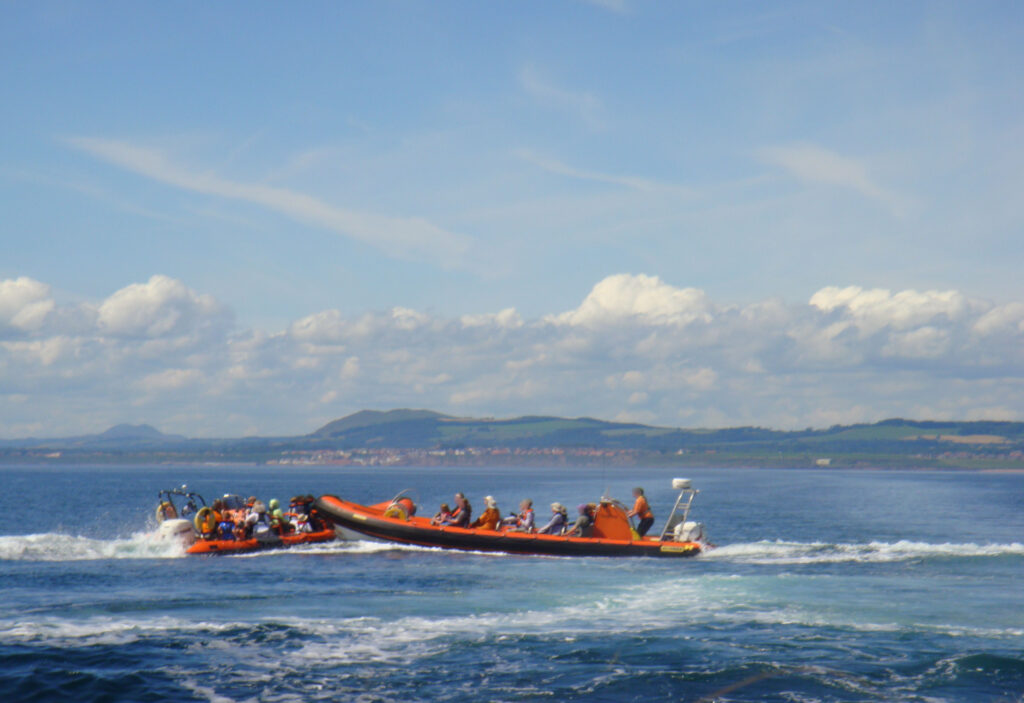

The collision between Osprey and Osprey II (image courtesy of Teresa Wong-Hui) that left a passenger with life-changing injuries highlighted how vulnerable passengers in small boats were to side impact injuries.

Accidents involving small race boats had shown how easily one boat hitting the other side-on could ride up and over it, and that the passengers in the receiving boat had little or no protection. RIBs were particularly vulnerable as the shape of the tubes helped lift the bow of the colliding boat so it crossed the seating area, and any passengers seated on the tubes could take the full force of the impact. Not only was it impossible to maintain a good posture when seated on a tube, but the added risks from side impact were considered too high and MAIB recommended that when the Maritime and Coastguard Agency (MCA) updated the small commercial craft codes it included a requirement that every passenger in a commercially operated passenger-carrying RIB had a suitable seat.

The Osprey RIBs accident also highlighted the hazards of fast/high-speed craft operating close to each other where, unless their manoeuvres were well coordinated, the risk of collision could be high. Although the two RIBs usually passed each other during a scheduled high-speed turn, on the day of the accident their start positions were reversed. As the RIBs approached each other head-on, the skippers were confused as to whether they should pass ‘as normal’ or follow the COLREGs and each alter to starboard. Although both skippers reduced speed the RIBs collided, crushing a passenger against the console. Had the risk of collision during the turn been considered before the trip, risk mitigation measures could have been planned.

Head-on impact risks for passengers on RIBs

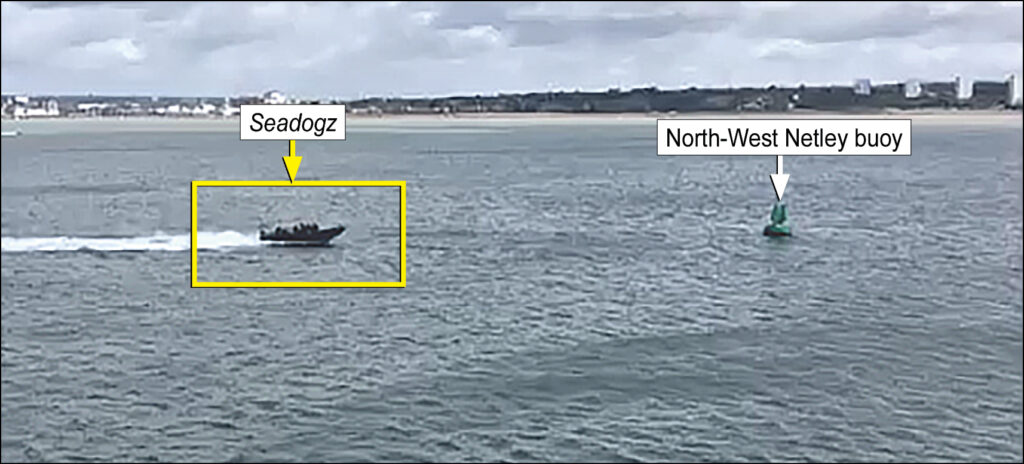

On 22 August 2020, the commercially operated RIB Seadogz hit a navigation buoy at high speed in Southampton Water (image courtesy of H Tuck). The skipper and the 11 passengers suffered impact injuries. Two passengers were thrown into the water and 15-year-old Emily Lewis, who was sitting in the middle of the bench seat, sustained fatal injuries.

Image from MAIB report into RIB accident and passenger injury

MAIB’s investigation concluded that the skipper did not see the buoy in sufficient time to avoid it as he had lost positional awareness, most likely due to the high mental workload of operating the RIB alone and at high speed.

Furthermore, the seating and handholds on the RIB afforded little protection to the passengers during rapid deceleration, the operator’s safety management procedures were cursory and generic, and the current regulations for such operations needed updating.

Other safety issues were also identified. Two of the passengers were ejected into the water, one of whom started to panic as their lifejacket rode up on inflation as it had not been fitted properly. From the helm position, the bow-up trim of the RIB and the passengers’ heads combined to limit the skipper’s forward visibility.

RIB ride fell short of ‘good practice’

Most worrying, the conduct of the trip fell short of ‘good practice’ in many ways. The tight figure-of-eight turns carried out at speed introduced the risk of a ‘hook’; the RIB was being jumped over wakes, and the frequent close passes to the large navigation buoys desensitised the passengers to the risk of collision.

When Seadogz was heading directly towards North-West Netley lateral buoy it is likely that most of the passengers expected the RIB to turn away at the last minute. When that did not happen, it was too late to warn the skipper of the impending collision.

In response to the accident, the Royal Yachting Association (RYA) has started to update the Passenger Safety on Commercial High Speed Craft and Experience Rides – a Voluntary Code of Practice, and MAIB has, again, made a number of recommendations.

The investigation report recommended that the MCA introduce updated guidance (the Sport and Pleasure Vessel Code) as soon as possible. However, noting the risks to passengers from vertical impacts and side impacts already identified in previous investigations, MAIB also recommended that the MCA carry out a full anthropometric assessment of the risks to passengers travelling in small high-speed craft, the results from which should be reflected in the new code as soon as possible. The port and harbour associations were also recommended to provide guidance to harbour authorities on how they should oversee the activities of small commercial craft operating in harbour areas.

Operators need to understand and apply lessons for passenger safety on RIBs

Initial feedback is that many operators seem to be distancing themselves from the Seadogz accident by saying that the lessons do not apply to their operation: Sea safaris and wildlife sightseeing trips are not high-speed/thrill rides, ‘so we can carry on as normal’. Perhaps too much focus has been put on ‘high speed’, but the reality is that passengers in RIBs can suffer horrific injuries at even slow speeds. The collision between Osprey and Osprey II occurred at relatively slow speed, but these large RIBs each weighed several tonnes so the crushing force was significant. And, last summer, a passenger on a sea safari RIB suffered life-changing spinal injuries when the RIB, travelling at quite slow speed, fell off a wave into a deep trough.

Time will tell whether the public will shun RIB rides as a result of the Seadogz accident, but the industry can be certain that those taking trips do not expect to spend the rest of their life in a wheelchair because of an injury sustained during the trip.

Strong market for RIB rides if owners ‘own’ best practice

RIB rides are accessible and fun when conducted well and there is a strong market for them. However, while the Sport and Pleasure Vessel Code is coming and the Passenger Safety on Commercial High Speed Craft and Experience Rides – a Voluntary Code of Practice is being updated, there is no need to wait for these before improvements are made. If the sector’s reputation is to survive accidents like Seadogz, owners and operators need to start owning best practice, controlling the risks and demonstrating that their trips are safe.

Operating procedures with passenger safety focus for RIBs

Good practice is being taught during RYA training, and there is plenty of guidance available in the Commercial High Speed Craft and Experience Rides Code and on the RYA’s website. However, it is worth reiterating a few key points.

Operators should be clear about the sort of trips they are offering, assess the hazards, and ensure that suitable mitigating measures are in place. If the mitigations cannot be delivered, the trip should not be offered.

Particular attention should be paid to feedback. If someone has been injured in the past, the trip/route should be adjusted to prevent it happening again.

Briefing. All helms should be briefed on what they should be doing and what is off limits. If, for example, the RIB’s seating does not provide shock mitigation, then strict speed and sea state limits need to be set and adhered to. If the trip involves high-speed manoeuvres, is a second crew required to help keep a lookout and an eye on passenger safety while the skipper is concentrating on helming?

Pre-departure briefing. There is a lot to fit in to a good pre-departure brief besides telling the passengers what they are about to experience. Lifejacket operation must be explained and their fit checked; passengers need to know how to sit correctly, brace themselves and hold on; each passenger must be allocated to a seat suitable for them and checks made to ensure their feet can gain firm purchase on the floor, their backs can rest on the back support, and they can grip the handholds correctly.

Signalling. The means of signalling concern or a problem needs to be both understood and achievable. Passengers are unlikely to raise their hands if they are clinging on for dear life. All this takes time, so scheduling must allow for it, or other staff used. Carrying out the brief while walking to the boat or donning lifejackets while underway might save time, but it will not save lives.

Conduct of the trip. The trip should always be operated in line with the offering made. If passengers have booked on a wildlife sea safari ride, they might not expect to be subjected to a thrill ride involving tightly banked turns at speed or wave and wake jumping. Even thrill-seeking passengers might find manoeuvring at 25 to 30 knots exciting so operating at 40 to 50 knots could stray into a terrifying experience.

It is worth remembering that skippers can easily become insulated from the experience on offer. If the RIB has an aft helm position, then the motion experienced by the crew will be much softer than that affecting passengers near the bow. The skipper is looking ahead and helming so they can anticipate the boat’s motion, they are experienced at bracing themselves and, of course, they have done the trip multiple times before. A passenger RIB ride is not the time to start exploring the operating limits of their boat; whatever the experience on offer, the skipper’s prime concern must be to return their passengers safely ashore uninjured.

Continue reading about accidents which MAIB has investigated and its subsequent recommendations.

This article was first published in Powerboat & RIB Magazine.
